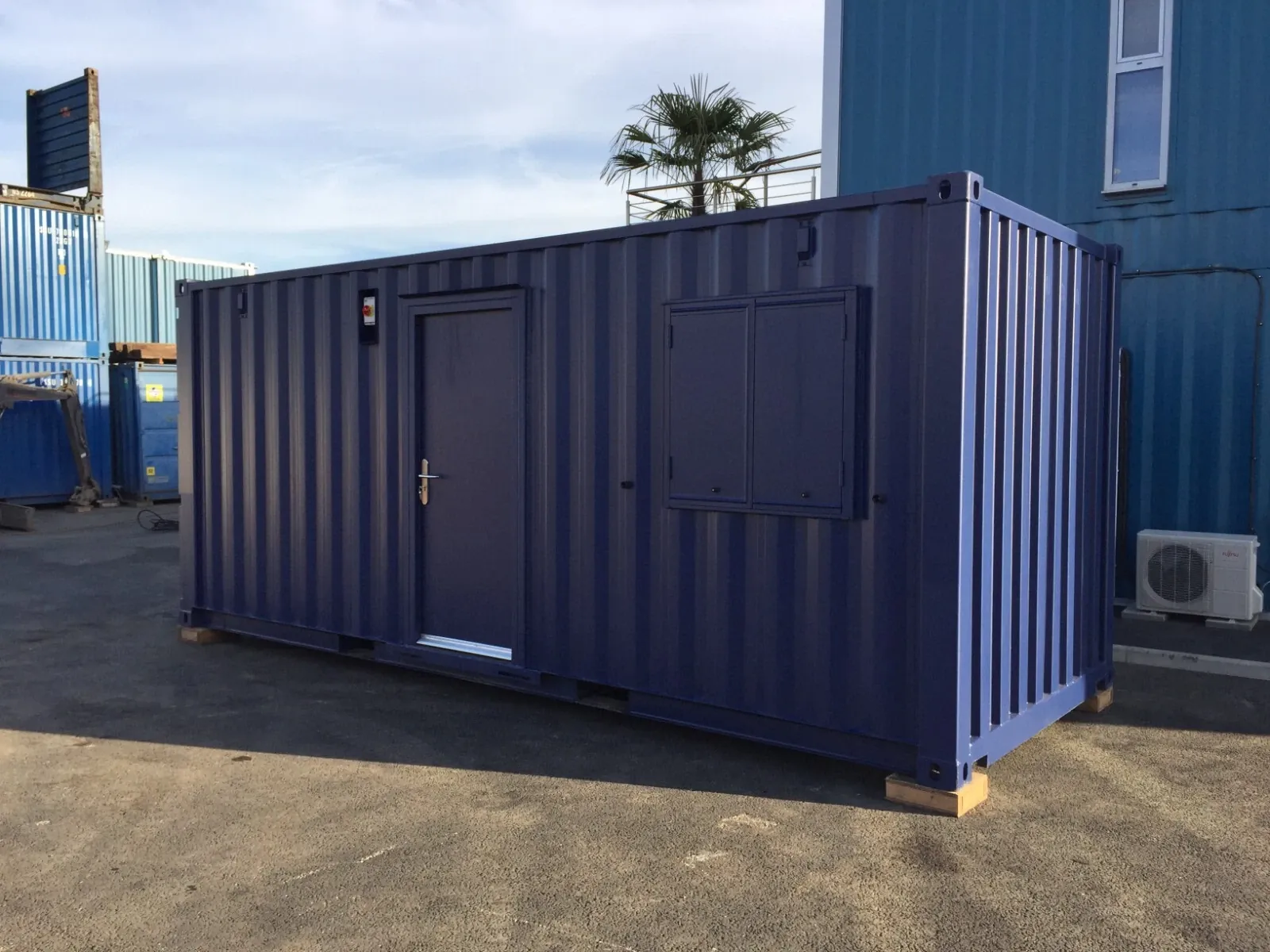

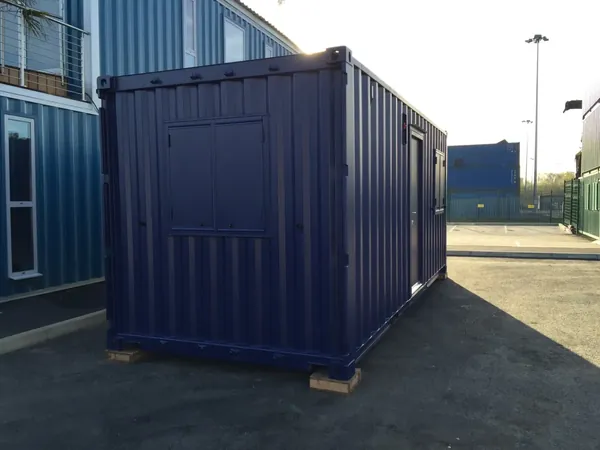

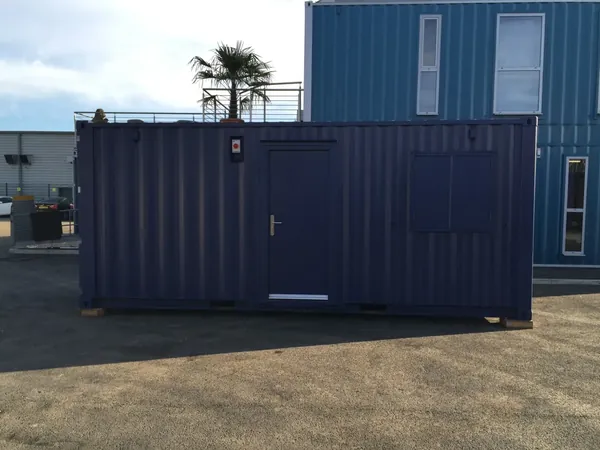

Portable Office Site Cabin Container 20ft x 8 ft

This 20ft x 8ft Portable Office Site Cabin delivers a rugged, lockable workspace built to drop onto commercial and industrial sites with very little groundwork. The shell is welded from heavy-duty steel and arrives as a fully self-contained office, so it can be positioned and put into service quickly while still standing up to the wear of an active job site. The interior is finished to a standard suitable for day-to-day administrative work.

Key Features

• All-steel welded shell: Fabricated from tested-quality steel, comprising a base frame, perimeter structure and a self-draining roof, with four reinforced corner columns to ease lifting and transport.
• Insulated walls and roof: Insulation in the walls and roof helps even out interior temperatures and cut down on outside noise.
• Finished wall panelling: 6mm decorative particle board cladding lines the interior for a clean, professional office look.
• Hard-wearing floor: Cement board is fixed to the base frame and topped with vinyl flooring for durability and easy cleaning.
• Built-in electrics: Pre-wired for 250-volt, 50 Hz single-phase AC, with wiring concealed in PVC conduit, an MCB-protected distribution board, lighting, ceiling fans and pre-wiring for air conditioning.
• Corrosion protection: Exterior steel is coated with zinc chromate primer and finished in epoxy or polyurethane for weather resistance.

Conceived as a modular, self-contained unit, this cabin suits temporary or permanent site offices. The 20ft by 8ft footprint gives a workable layout for administration, staff welfare or site management. It is built around a heavy-duty steel frame: the base uses pressed mild steel channels, while corrugated steel sheets are welded to the frame for the walls and roof to give structural rigidity. Glass wool insulation fills the wall and roof cavities, a standard approach for improving thermal and acoustic performance in modular buildings.

Entry is through a robust steel door fitted with locks and handles inside and out, and aluminium sliding windows admit daylight and ventilation. Interior surfaces are clad in decorative laminated particle board, giving a finished appearance that contrasts with the tough exterior. The electrical installation provides internal switchboards, sockets and connection points ready for office equipment and HVAC, with all cabling run in concealed conduit for safety.

Construction details include a pressed mild steel base frame using 80x40mm SQ pipe at 2.5mm thickness, walls and roof of 20 SWG MS corrugated sheet continuously welded to the frame, and 50mm glass wool insulation in the walls and roof. Interior walls carry 6mm decorative laminated particle board, and the floor is 18mm composite cement board topped with 1mm PVC vinyl. The external opening door is a double-skin insulated steel unit measuring 6.5 ft (H) x 3.3 ft (W), and the aluminium sliding windows measure 2.5 ft x 4 ft with clear vision glass and external weather sheds. The electrical system uses concealed PVC conduit wiring with an MCB distribution board, LED lights, ceiling fans, AC pre-wiring and power sockets configured to the destination standard. The cabin is painted with a zinc chromate primer base and an epoxy or PU finish, and it carries four top-mounted lifting hooks plus six 8-inch support legs. External dimensions are 20 ft long, 8 ft wide and 8.5 ft high.

This portable cabin can serve as an on-site administrative office, a staff welfare room or a security checkpoint. Typical applications include construction site project offices, mining and resource sector accommodation, industrial guard houses and entry gates, temporary classrooms or field clinics, and event ticket booths and information centres.

The unit ships fully assembled and includes one 20ft x 8ft portable steel cabin structure, a pre-hung steel entry door with locking hardware, installed aluminium sliding windows, a complete internal electrical system (distribution board, MCB, LED lighting, ceiling fans and AC pre-wiring), and installed wall outlets in US standard configuration.
