Triple Toilet Unit (Can be customized)

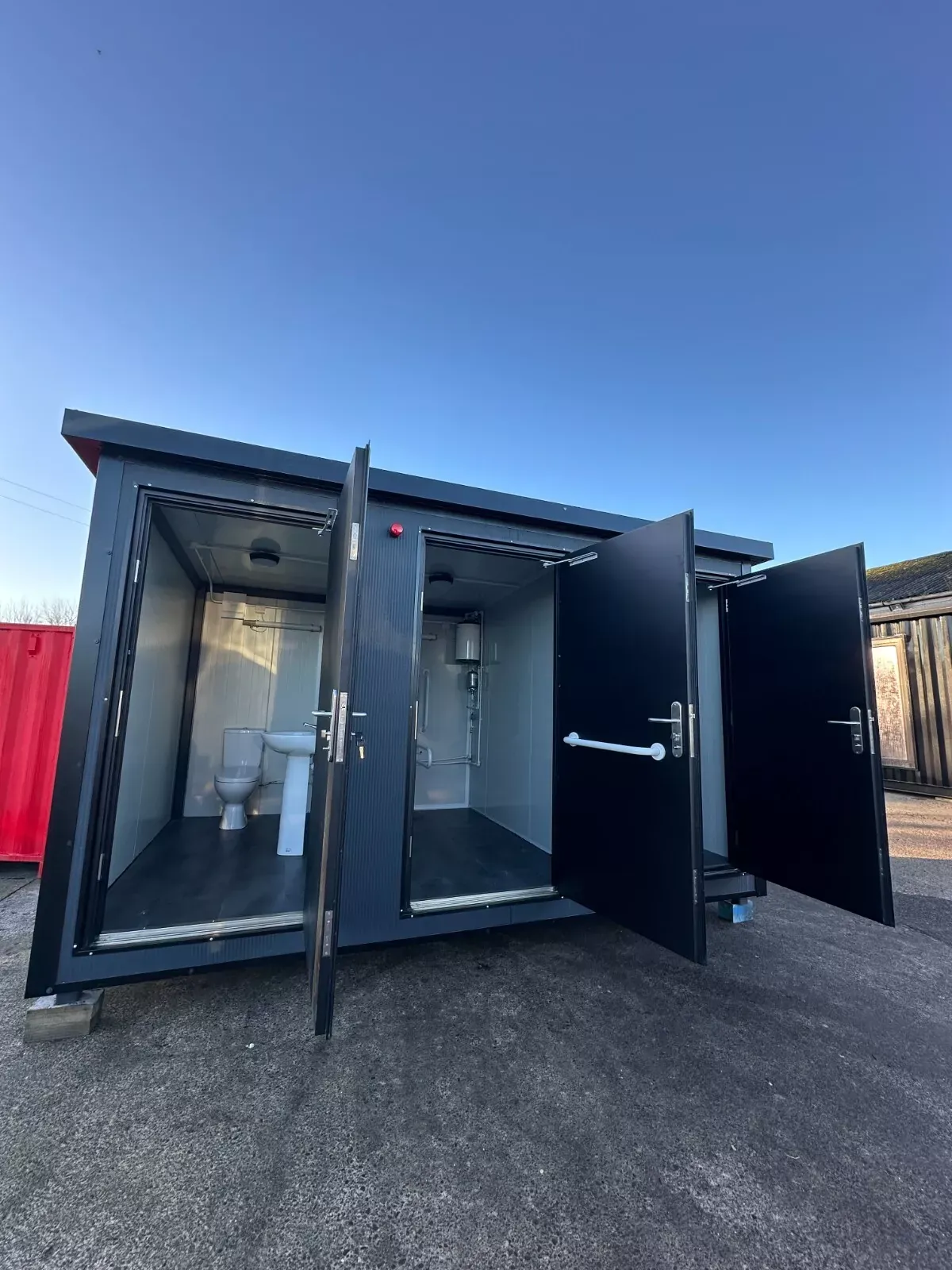

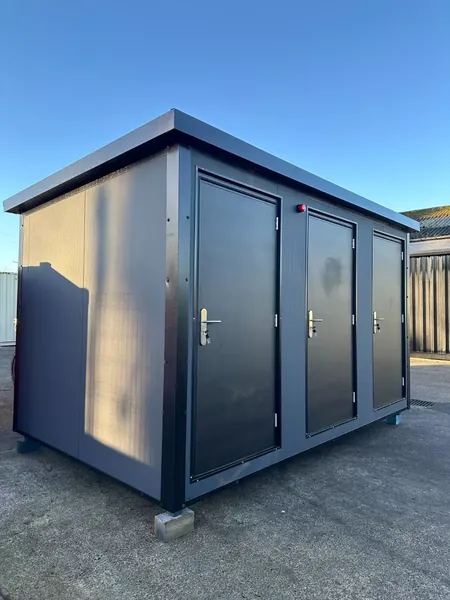

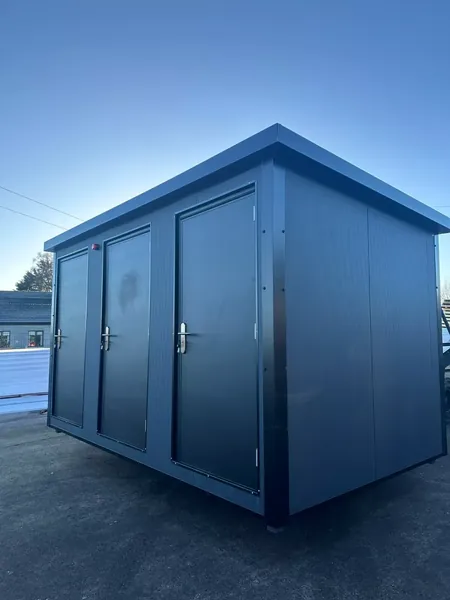

This Triple Toilet Unit is a self-contained sanitation facility built inside a modified shipping container framework. Designed for sites that need permanent or temporary restroom infrastructure, it provides three separate toilet compartments within one secure structure, and the containerised construction makes transport and installation straightforward across varied site conditions.

Key Features

• Three-compartment configuration: Individual private toilet rooms, each enclosed for privacy and simultaneous use.
• Customizable layout: Interior partitions and fixture placement can be changed to match project specifications.
• Shipping container construction: Steel frame with corrugated wall panels for durability and security.
• Integrated plumbing: Pre-installed fresh water supply lines and waste discharge connections.
• Ventilation: Passive or mechanical ventilation provisions built into the wall or roof panels.
• Lockable entry doors: Each compartment has an interior privacy lock.
• Weather-resistant exterior: Galvanized steel cladding with a corrosion-resistant coating.

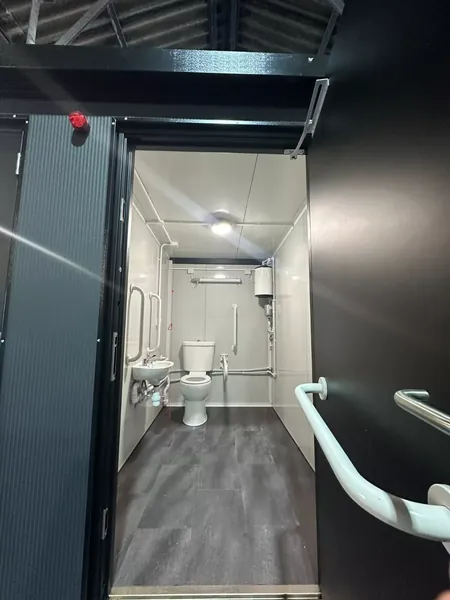

• Accessibility-ready: Dimensions can suit ADA-compliant configurations on request.

The unit repurposes a standard shipping container structure into a functional multi-stall sanitation facility. The frame is formed from cold-rolled steel profiles, with corrugated galvanized steel sheet cladding on the exterior walls. This steel structure offers inherent security and resistance to vandalism, making it suitable for unsupervised sites.

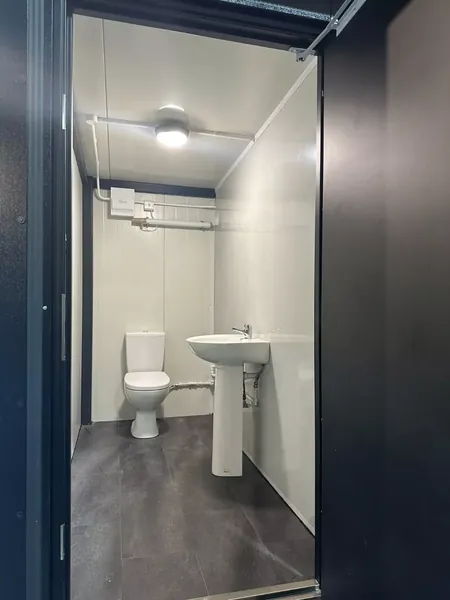

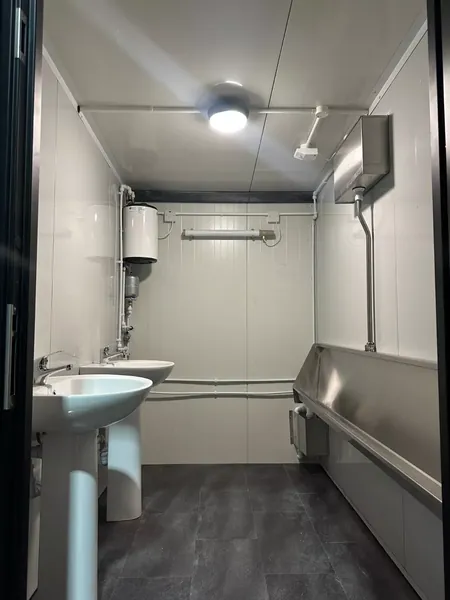

The interior is split into three compartments, each holding a toilet fixture. Partitions use moisture-resistant materials such as glass-magnesium board or fibre-reinforced plastic, which cope with humidity and clean easily, while the flooring is non-slip, waterproof material with drainage gradients toward waste collection points. Plumbing rough-ins are completed during fabrication, with supply lines and waste outlets positioned for connection to external water sources and septic systems or holding tanks; the configuration supports either a direct sewer connection or self-contained operation with holding tanks depending on site needs.

Electrical provisions include interior lighting in each compartment and external security lighting where specified, with switchgear housed in weatherproof enclosures. Insulation using mineral wool or closed-cell foam can be added to the wall cavities for temperature moderation. As a customizable product, the unit can be modified before delivery, including repositioning partitions, choosing interior finishes, adding handwashing stations, or incorporating accessible compartment dimensions, all completed during fabrication.

Technical specifications: the structure type is a modified shipping container frame; the exterior material is corrugated galvanized steel sheet (0.5mm thickness typical); the frame is cold-rolled welded steel profiles; interior wall finish is glass-magnesium board or equivalent moisture-resistant panel; flooring is non-slip vinyl or phenolic-coated plywood; the number of compartments is 3; the toilet type is fresh water flush ceramic fixtures; standard compartment width is 900mm to 1200mm (customizable); doors are steel or composite security doors with interior locks; ventilation is passive roof vents or mechanical exhaust provisions; the electrical system is 12V or 24V DC lighting with an external connection point for site power; plumbing connections are standard water inlet and waste outlet couplings; and customization options include partition relocation, additional sinks, accessible compartments and insulation upgrades.

The Triple Toilet Unit suits many deployments needing durable, relocatable sanitation: construction sites (meeting OSHA construction sanitation standards for work crews), industrial facilities (supplementary restrooms in warehouses, distribution centres or remote areas), event venues (permanent or seasonal sanitation at fairgrounds, campgrounds or outdoor recreation sites), temporary installations (disaster response staging, temporary workforce housing or field operations), infrastructure projects (pipeline construction, utility maintenance or transportation work needing mobile facilities), and rural applications (where permanent sewer connections are unavailable or too costly).

The package includes one Triple Toilet Unit as specified, three ceramic toilet fixtures with flush mechanisms, three interior compartment doors with privacy locks, pre-installed interior lighting in each compartment, an exterior access panel for utility connections, and manufacturer documentation with connection diagrams and maintenance guidelines.
