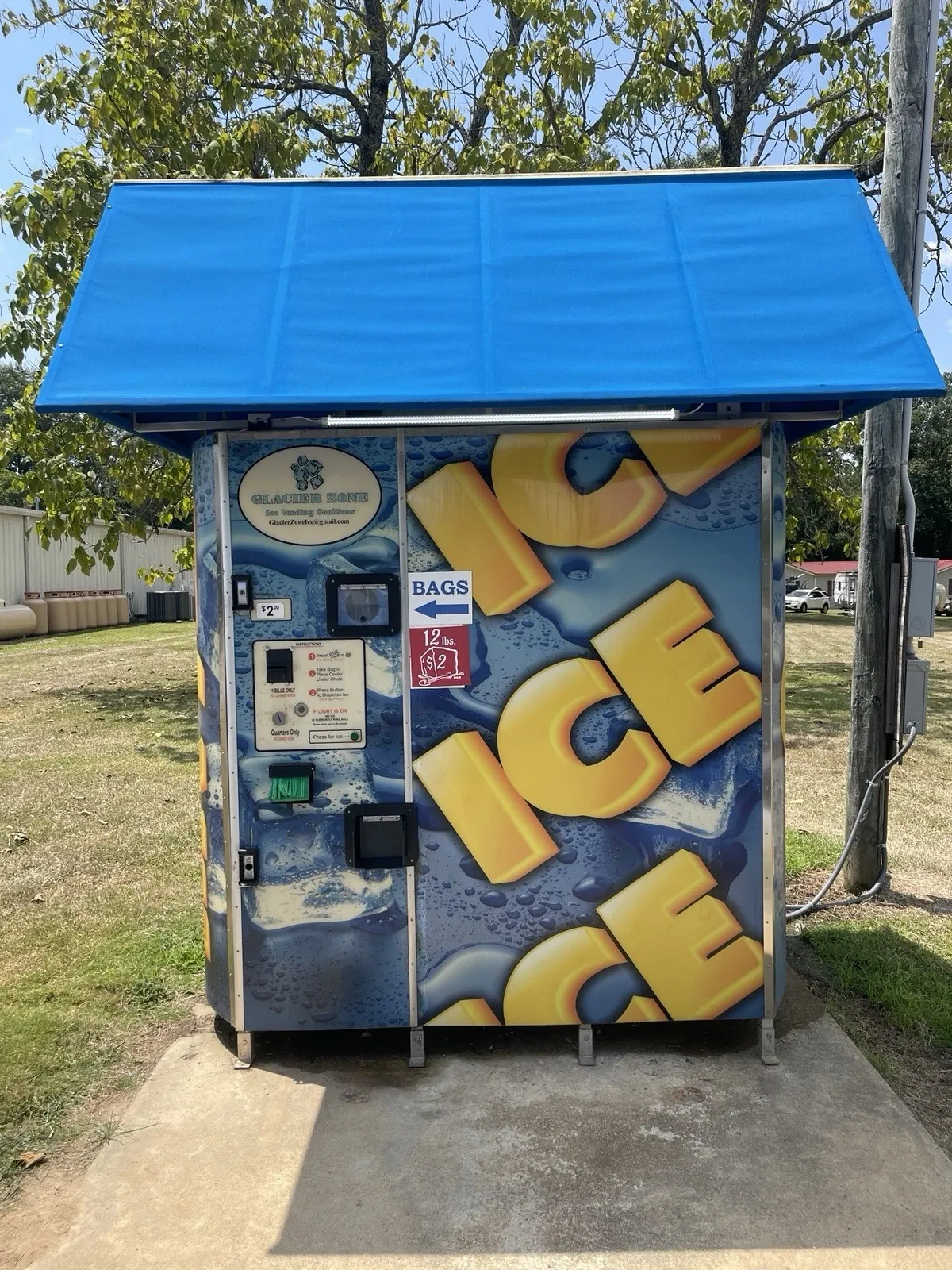

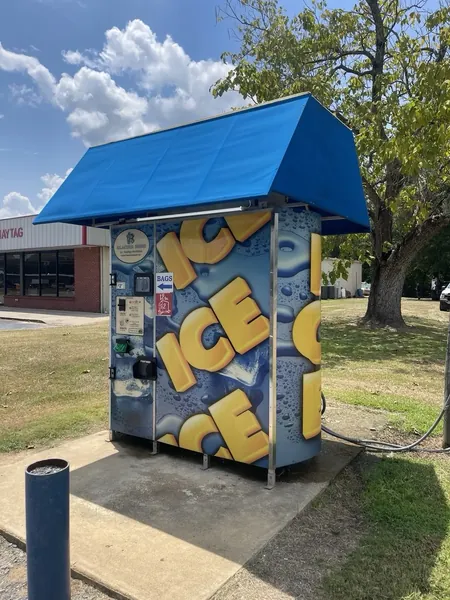

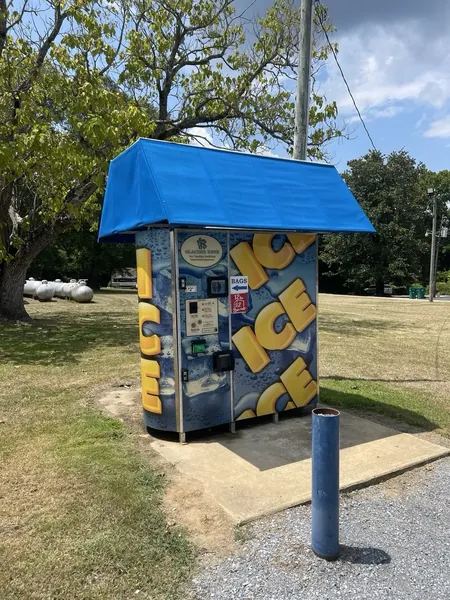

Ice Depot – Commercial Ice Vending Machine (High Capacity)

The Ice Depot is a commercial-grade ice vending machine engineered for high-volume production and automated dispensing. This self-contained unit is built for retail locations, fuel stations, campgrounds, and self-service facilities that need reliable ice access. Constructed with food-grade materials throughout, it integrates ice production, storage, bagging, and payment processing into a single enclosure.

Key Features

• High daily production capacity producing up to 450 kilograms (about 992 pounds) of ice per 24-hour cycle.
• Dual dispensing options offering both bagged and bulk ice through separate chutes.
• Multi-denomination payment system accepting bills, coins, and IC cards with change return.
• Five-stage reverse osmosis filtration running inlet water through sediment, activated carbon, and RO membrane stages.
• Food-grade stainless steel construction (grade 304) on all surfaces that contact ice or water.
• Automated bagging mechanism that dispenses, weighs, fills, and seals bags without operator help.
• Remote monitoring capability via GSM-based reporting and controls.
• Automatic safety shutoffs triggered when water is low, ice storage is full, or bags run out.

The Ice Depot works as a fully integrated ice production and vending system. Incoming water passes through a multistage purification process before reaching the ice maker. The formation chamber produces uniform 22×22×22 millimeter cube ice, which moves to an insulated storage bin. An internal auger system carries ice from storage to the dispensing mechanism as required.

When a customer starts a purchase, the payment system validates currency and signals the control board to begin dispensing. For bagged orders, the machine positions an empty bag, fills it to the programmed weight, and heat-seals it before delivery. Bulk ice dispenses directly through a separate chute into the customer's own container.

The cabinet uses a front-door design for access to internal components during maintenance. A waterproof powder-coated steel exterior shields the internal mechanisms from weather when installed outdoors. The control system continuously monitors ice levels, water input, bag supply, and payment processing to keep operations running.

Technical Specifications

• Model: JM450
• Daily Ice Production: 450 kg (992 lbs)
• Ice Cube Dimensions: 22×22×22 mm
• Storage Capacity: high-capacity insulated bin (exact capacity varies by configuration)
• Payment Acceptance: bills, coins, IC card with change return
• Filtration Stages: 5-stage reverse osmosis system
• Cabinet Dimensions: 1200 mm W × 1000 mm D × 2200 mm H (47.2" × 39.4" × 86.6")
• Net Weight: 500 kg (1,102 lbs)
• Cabinet Material: waterproof steel with food-grade stainless steel interior surfaces
• Electrical Requirements: commercial power supply (specifications by configuration)
• Water Connection: standard inlet water line with filtration system
• Operating Lifespan: 8-10 years with regular maintenance
• Certifications: CE compliant
• Shipping Configuration: 8 units per 20-foot container, 16 units per 40-foot container

The integrated water purification system runs through sequential filtration stages: Stage 1 is a 10-inch, 5-micron precision sediment filter; Stage 2 is a 10-inch bulk activated carbon filter; Stage 3 is a 10-inch sintered activated carbon filter; Stage 4 is a reverse osmosis membrane (200 GPD / 750 liters per 24-hour capacity, optional upgrade); and Stage 5 is a post-activated carbon final polishing filter. All filtration components meet NSF standards for drinking water treatment.

The Ice Depot is intended for commercial installation in self-service retail locations needing unattended ice sales, fuel stations and travel centers, campgrounds and RV parks, marinas and boat launch facilities, grocery store parking lots, and multi-unit residential developments with shared amenities. The unit runs continuously indoors or outdoors and requires electrical service and a potable water supply, plus regular maintenance access for filter changes, sanitation, and mechanical servicing.

Package Includes

• Ice Depot JM450 commercial vending machine unit
• Integrated multistage water filtration system
• Bill and coin validator with change return mechanism
• IC card reader (factory-installed)
• Automated bagging mechanism with heat sealer
• GSM remote monitoring module
• Installation and operation manual
• Starter supply of vending bags
