40ft Shipping Container w/3 Roll-Up Side Doors

This 40ft shipping container is fitted with three roll-up side doors that greatly improve access and loading flexibility. Built from heavy-duty corten steel, it is designed for secure storage, transport, and a variety of modified applications, and it is windproof and water-resistant to protect contents in diverse weather.

Key Features

• Three roll-up side doors: Multiple access points along the length allow efficient loading and unloading from either side.
• Corten steel construction: Durable weathering steel provides structural integrity and corrosion resistance.
• Standard 40ft dimensions: Industry-standard sizing fits existing transport and handling equipment.
• Windproof and water-resistant design: Weather sealing protects contents from the elements.
• Wooden flooring: Standard marine-grade plywood flooring installed.
• Double swing rear doors: Conventional rear doors with locking rods for secure closure.
• Ventilation: Passive vents help reduce condensation buildup.

The 40ft container with three roll-up side doors is a modified take on the standard intermodal design. It is made from corten steel, a high-strength weathering alloy that develops a protective oxide layer outdoors, lowering maintenance and extending service life.

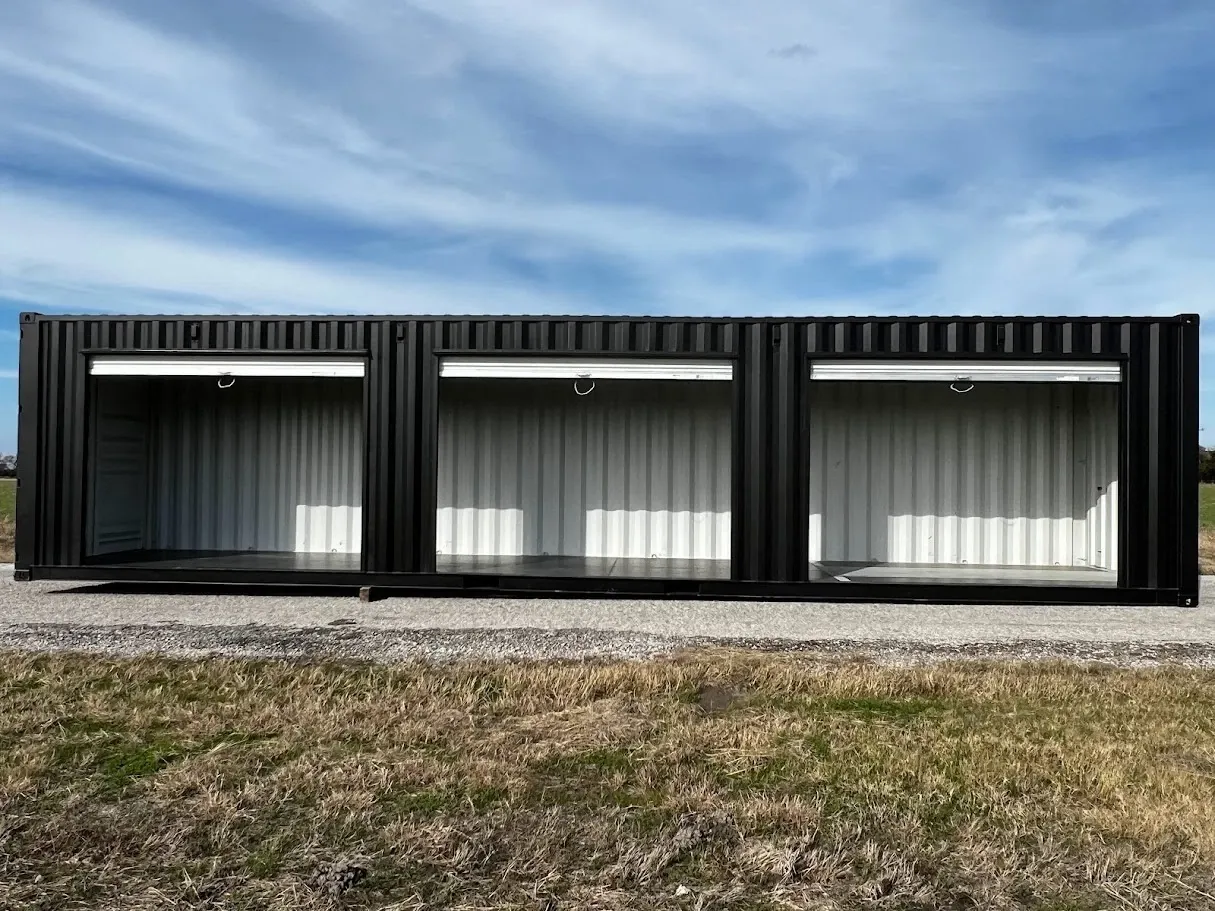

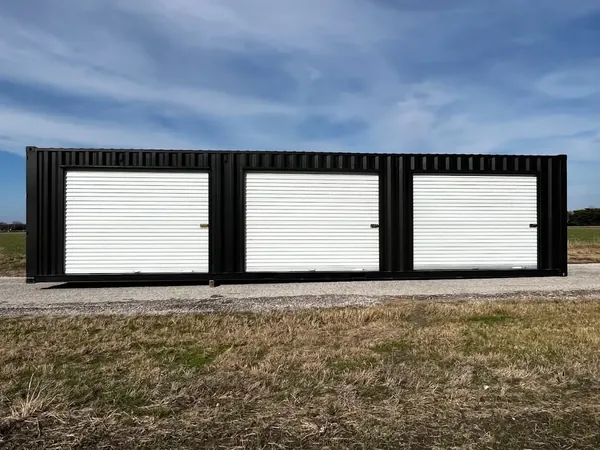

The three roll-up side doors mark a significant change from standard configurations. They roll up into the container ceiling to create unobstructed openings along the sidewalls, and each operates manually with spring-assisted mechanisms. Weather seals and locking systems keep them secure when closed.

Construction includes reinforced corner posts with ISO-standard corner castings, allowing standard lifting and securing using reach stackers, forklifts, and spreaders. The roof and sidewalls are corrugated steel panels welded to the frame.

Inside, a marine-grade plywood floor sits over steel cross members, treated for moisture resistance and built to carry distributed loads. There are no forklift pockets in the floor structure, so wheeled equipment requires ramp access.

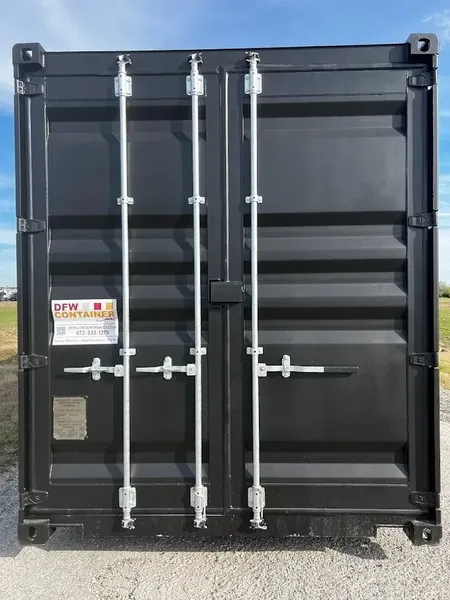

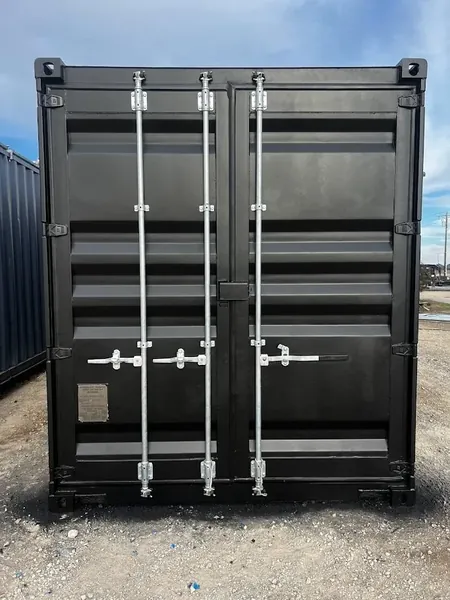

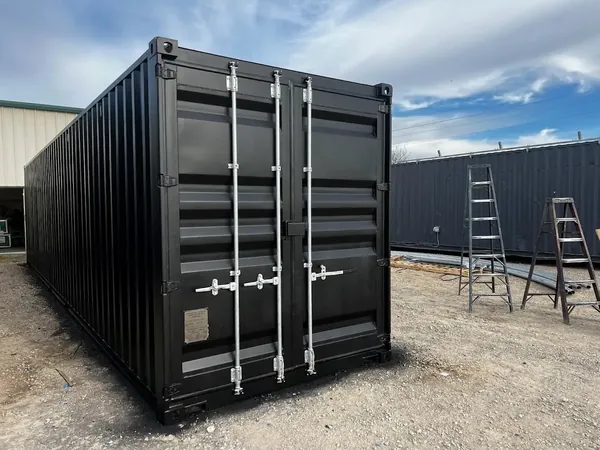

The rear end carries double swing doors that open to roughly 270 degrees, fitted with anti-rack plates and locking bars with security seals. A door threshold plate protects the floor edge during loading. Ventilation comes from passive vents in the end panels, allowing air exchange while keeping water out. The interior is not insulated or climate-controlled.

Technical Specifications

• External length: 40 ft (12.19 m)
• External width: 8 ft (2.44 m)
• External height: 8 ft 6 in (2.59 m)
• Internal length: approximately 39 ft 5 in (12.01 m)
• Internal width: approximately 7 ft 8 in (2.34 m)
• Internal height: approximately 7 ft 10 in (2.39 m)
• Door opening width (rear): 7 ft 8 in (2.34 m)
• Door opening height (rear): 7 ft 5 in (2.26 m)
• Side door opening width (each): approximately 8 ft (2.44 m)
• Side door opening height: approximately 7 ft (2.13 m)
• Maximum gross weight: 67,200 lb (30,480 kg)
• Tare weight: approximately 8,820 lb (4,000 kg)
• Maximum payload: approximately 58,380 lb (26,480 kg)
• Material: Corten steel (ASTM A606)
• Flooring: Marine-grade plywood, 1 1/8 in (28 mm)
• Locking mechanism: Rear doors use locking rods with handles and sealable locks; side doors use internal latching mechanisms
• Corner castings: ISO standard, top and bottom
• Ventilation: Passive vents at end walls

Note: Dimensions are nominal and may vary slightly by manufacturer and production batch.

This configuration suits many commercial and industrial uses, including on-site storage of equipment, materials, and supplies at construction sites, industrial facilities, or commercial properties; a mobile workshop that can be modified for workbench installations in field service; material handling where the side doors allow forklift loading from multiple angles; bulk storage for agricultural grains, feeds, or equipment; retail or event space adapted into installations, concession stands, or event support; and an equipment enclosure protecting generators, pumps, or other outdoor equipment. The multiple side doors are especially helpful where frequent access along the container length is needed or where space limits rear-door-only access.

Package Includes

• (1) 40ft shipping container with corten steel construction
• (3) Roll-up side doors with operating mechanisms
• (1) Pair of double swing rear doors with locking rods and handles
• Factory-installed marine-grade plywood flooring
• Corner castings for lifting and securing
• Standard passive ventilation vents
